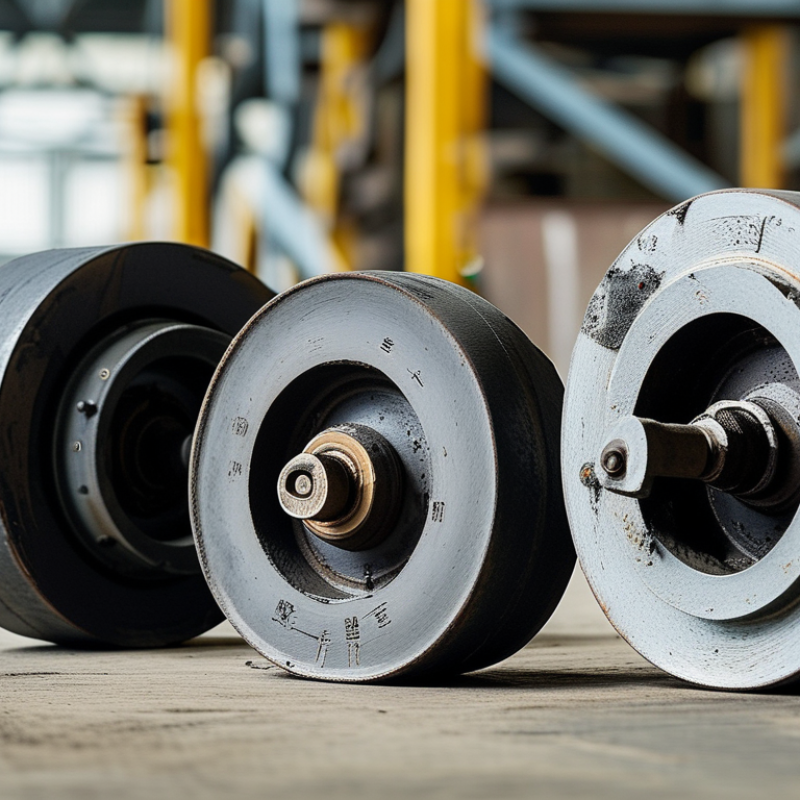

How to Choose Iron Castors for Industrial Applications?

Choosing Iron Castors for industrial applications requires more than matching wheel size to equipment weight. The working environment often determines whether a cast iron wheel performs reliably or causes avoidable damage. Consider the total load, floor condition, travel frequency, temperature, moisture, and exposure to chemicals. A loaded trolley may behave differently on smooth concrete than on uneven workshop flooring.

Small details matter. Wheel diameter affects rolling resistance and obstacle clearance. Larger wheels usually move more easily across joints, debris, and shallow thresholds. Wheel width influences floor pressure and stability. The mounting plate, swivel head, axle, and brake must also match the equipment’s weight and movement pattern. Do not guess. Use the manufacturer’s rated capacity, preferably with a safety margin for uneven loading and sudden movement.

Experienced maintenance teams often inspect castors after installation, not only during replacement. They check loose fasteners, worn bearings, damaged wheels, and brake performance. Iron Castors suit demanding environments where high load capacity and strong impact resistance matter. However, they can create noise and may mark or damage sensitive floors. This trade-off deserves honest attention. The “strongest” option is not always the most suitable one. Review technical drawings, test records, operating temperatures, and floor requirements before purchase. A short trial with the actual trolley can reveal problems that a catalogue cannot. Reliable suppliers should explain limitations clearly and provide traceable product information. That practical evidence supports a safer, more durable choice.

How to Choose Iron Castors for Industrial Applications?
Table of Contents [Hide]
1 Define Load, Mobility, and Operating Requirements
2 Match Castor Capacity to Equipment Weight and Safety Factors
3 Choose Wheel Size, Tread Design, and Iron Grade
4 Select Mounting Types, Bearings, and Braking Features
5 Verify Environmental Resistance, Installation Fit, and Safety Standards

Define Load, Mobility, and Operating Requirements

How to Choose Iron Castors for Industrial Applications?

Define the load before choosing an iron castor. Add the cart’s weight, maximum cargo, tools, and possible impact loads. Divide this total by three, not four, when uneven floors may reduce contact. Then apply a practical safety margin, often 25% to 50%. A neat calculation can still mislead. Confirm the real load with a floor scale and a short workplace trial. Iron castors suit heavy equipment and high-temperature areas, but they may damage delicate floors or create more noise.

Mobility depends on layout and handling frequency. Swivel castors improve turning in narrow aisles, while fixed castors support straight travel. Choose wheel diameter according to floor joints, debris, ramps, and thresholds. Larger wheels generally reduce rolling resistance. Brakes should control both wheel rotation and swivel movement when operators need stable loading. The U.S. Bureau of Labor Statistics reported 2.6 million nonfatal private-industry injuries in 2023. This figure does not prove castor selection caused injuries, but it reinforces the need to reduce pushing force and sudden movement.

Tips: Record travel speed, floor material, temperature, chemicals, moisture, and cleaning methods. Test the loaded cart during actual shifts. Listen for vibration. Check mounting plates, fasteners, and wheel wear weekly. NIOSH ergonomic guidance favors reducing forceful pushing and pulling, yet real sites often overlook maintenance. That is the uncomfortable part. A strong castor cannot correct an overloaded, poorly balanced cart. Recheck requirements after six months, because production routines rarely remain unchanged.

Match Castor Capacity to Equipment Weight and Safety Factors

Selecting iron castors for industrial equipment starts with the real operating load, not the wheel diameter. Weigh the machine, attachments, stored materials, and any tools placed on it. Add moving forces created during pushing, stopping, turning, and crossing floor joints. A quiet workshop can still produce sudden shocks.

Use this practical calculation: required capacity per castor equals total operating load multiplied by the safety factor, then divided by the number of load-bearing castors. Four castors do not always share weight equally. On uneven floors, three may carry most of the load. For stable indoor equipment, a factor around 1.25 may be reasonable. Repeated impacts, ramps, high temperatures, or rough surfaces require a higher factor confirmed by engineering review. Check the published rating under comparable speed and floor conditions.

Do not rely on a catalogue number alone. Confirm the mounting plate, bolt pattern, swivel clearance, brake access, and floor contact. The iron body may withstand heavy loads, while a weak attachment point fails first. I have seen calculations look correct but ignore stored materials added later. That mistake deserves attention. Test the assembled equipment with its heaviest normal load, then inspect wheel deformation, unusual noise, and mounting bolts. Record the result and reassess after changes in load or operating route.

How to Choose Iron Castors for Industrial Applications?

Match the castor capacity to the equipment weight and an appropriate safety factor. This example assumes four castors are installed, but only three carry the full load because of uneven floors or load distribution.

Calculation: Minimum capacity per castor = equipment weight × safety factor ÷ 3. Select a castor with a rated capacity equal to or greater than the calculated value. Higher safety factors are used for heavier loads, impact, movement, or uneven operating conditions.

Choose Wheel Size, Tread Design, and Iron Grade

Choosing iron castors starts with wheel size, tread design, and iron grade. A larger wheel, such as 150–200 mm, crosses floor joints more smoothly. It also reduces pushing effort on uneven concrete. Smaller wheels save installation space, but they transfer more shock into the frame. Calculate capacity from the total equipment weight, payload, and a safety margin. Many engineers divide the working load by three, not four, because floors are rarely perfectly level. ISO 22883:2021 provides caster performance testing guidance for load, rolling, and obstacle conditions.

Tread design should match the floor and operating speed. Plain iron treads suit hot areas, metal chips, and heavy static loads. They can mark finished concrete and create considerable noise. A resilient tread reduces vibration, but it may wear faster under sharp debris. ASTM A48/A48M identifies Class 30 gray iron with a minimum tensile strength of 30 ksi, or about 207 MPa. Class 40 raises that minimum to 40 ksi, or about 276 MPa. Higher strength helps, but it does not replace correct wheel geometry. I have seen strong wheels fail after repeated side impacts. The design was too narrow.

Tips: Measure doorway thresholds, floor gaps, turning radius, and daily travel distance. Check both static and rolling capacity. Add corrosion protection when moisture is present. Do not select the highest iron grade automatically; it may increase cost without improving the actual failure point. A perfect calculation can still miss real floor abuse.

How to Choose Iron Castors for Industrial Applications? - Choose Wheel Size, Tread Design, and Iron Grade
Typical Application Recommended Wheel Diameter Typical Tread Width Typical Working Load per Castor Recommended Tread Design Suggested Iron Grade Key Selection Considerations
Machine stands, fixtures, and light industrial carts 100 mm 30–40 mm 150–300 kg Flat or slightly crowned tread Gray cast iron, ASTM A48 Class 30 or equivalent Compact and economical. Suitable for smooth concrete floors and moderate movement speeds.
Workshop trolleys and material-handling carts 125 mm 35–50 mm 200–400 kg Flat tread with machined running surface Gray cast iron, ASTM A48 Class 30–40 or equivalent Provides a balance between maneuverability and load capacity. Check floor joints and thresholds before selection.
Heavy-duty factory carts and production-line equipment 160 mm 40–60 mm 300–600 kg Flat tread for straight travel; crowned tread for easier steering Gray cast iron, ASTM A48 Class 40 or equivalent Larger diameter reduces rolling resistance over small floor gaps. A rigid mounting plate is recommended for high static loads.
Heavy machinery, tooling platforms, and industrial racks 200 mm 50–70 mm 400–800 kg Wide flat tread with a precision-machined surface Ductile iron, ASTM A536 65-45-12 or equivalent Ductile iron offers greater impact resistance and toughness than conventional gray cast iron. Use a suitable brake for parked loads.
Very heavy equipment and high-capacity transport platforms 250 mm 60–80 mm 600–1,200 kg Extra-wide flat tread; flanged profile only for guided rails Ductile iron, ASTM A536 65-45-12 or higher-grade equivalent Requires a strong axle, mounting structure, and level floor. Confirm turning loads and shock loads separately from static capacity.
Guided transfer carts operating on fixed rails 125–250 mm 40–80 mm 300–1,200 kg Flanged tread matched to the rail profile Ductile iron or wear-resistant alloy iron Use only with compatible rail dimensions. The flange guides the wheel but should not be used to compensate for poor rail alignment.
High-impact loading zones and uneven industrial floors 160–250 mm 50–80 mm 400–1,200 kg Wide flat tread with rounded edges Ductile iron, ASTM A536 65-45-12 or equivalent Choose a larger diameter and ductile iron to improve impact resistance. Reduce the rated capacity when frequent shock loading occurs.
Engineering note: The load figures are representative selection ranges for one castor under controlled conditions, not universal ratings. For a four-castor cart, do not automatically divide the total load by four; uneven floors and dynamic movement commonly require a three-castor load calculation plus an appropriate safety factor. Verify axle strength, mounting plate capacity, floor condition, operating speed, temperature, corrosion exposure, and braking requirements before final selection.

Select Mounting Types, Bearings, and Braking Features

Choosing iron castors for industrial applications starts with the mounting type. A top plate suits heavy machines and distributes force across a wider frame area. A threaded stem works better on adjustable equipment, but loose threads can create alignment problems. In plant-floor trials, I prefer four-bolt plates for loaded carts above 500 kilograms. The U.S. Occupational Safety and Health Administration identifies material handling as a major source of workplace injuries, so mounting security deserves more attention than appearance. Check bolt grade, plate thickness, frame reinforcement, and access for tightening.

Bearings determine rolling effort and service life. Plain bearings suit slow movement, dusty floors, and moderate loads. Ball bearings reduce starting resistance on long routes, especially when carts carry several hundred kilograms. A 2023 report from the Freedonia Group links demand for industrial casters with warehouse automation and heavier internal transport, where repeated movement increases bearing stress. That trend matters. Still, choosing the most expensive bearing is not always sensible. Moisture, heat, shock, and cleaning chemicals may matter more than speed.

Braking features require careful selection. A wheel brake stops rotation, while a total-lock brake stops both rotation and swivel. The second option gives better control on sloped floors, but operators may release it inconsistently. ISO 22883 testing evaluates caster performance under defined loads, rolling resistance, and obstacle conditions; request comparable test results before purchasing. I often specify a directional lock for long straight aisles. It improves tracking, though it can make tight turns awkward. Small details matter.

Verify Environmental Resistance, Installation Fit, and Safety Standards

Choosing iron castors for industrial equipment requires more than checking load capacity. Start with the environment. Wet floors, salt spray, cutting fluids, and cleaning chemicals can attack untreated iron quickly. A corrosion-resistant coating helps, but it is not a magic shield. In food, coastal, or chemical areas, verify the coating test method and operating temperature.

Installation fit is equally important. Measure the mounting plate, bolt-hole pattern, stem diameter, and swivel clearance. Check the wheel width against floor joints and drainage channels. Calculate capacity using the equipment weight, contents, and a safety margin. A practical method divides the total load by three, not four, because uneven floors can leave one castor partially unloaded. The U.S. Occupational Safety and Health Administration requires storage and material-handling systems to remain stable under workplace conditions. That requirement makes fit and stability essential, not optional.

Safety standards deserve documented evidence. ISO 22883:2004 covers performance requirements and testing for industrial castors and wheels, including load, resistance, and braking functions. Ask for test results, not only catalogue claims. The U.S. Bureau of Labor Statistics recorded 888,220 private-industry cases involving days away from work in 2023. Castors do not cause every incident, but poor braking or unexpected movement can worsen one. Select total-lock brakes for sloped areas, and confirm the brake works with oily footwear and gloves. I would also inspect fasteners after initial use. That step is easy to overlook. Real floors are rarely as flat as drawings suggest.
